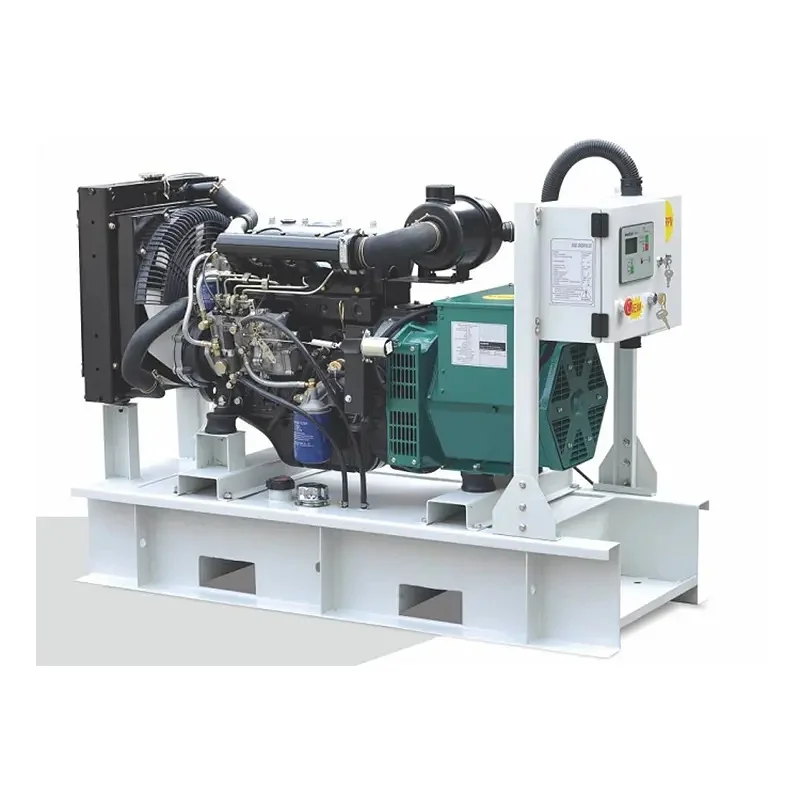

1 / 1YANGDONG Water-Cooled Series Diesel Generator Sets
share
Power coverage from: 9.5~80KVA
Model: Open type/Silent/Super silent type
Engine: YANGDONG
Speed: 1500/1800rpm
Alternator: Stamford/LeroySomer/Marathon/MeccAlte
IP &Insulation Class: IP22-23&F/H
Frequency: 50/60Hz
Controller: Deepsea/Comap/SmartGen/Mebay/DATAKOM/Others
ATS System: AISIKA1/YUYE/Others
Silent&Super silent Gen-set Soundlevel: 63-75dB(A)(at 7m side)
Technical Data
| 50HZ | ||||||||||||
| Genset Performance | Engine Performance | Dimension(L*W*H) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Genset Model | Prime Power | Standby Power | Engine model | Speed | Prime power | Fuel Cons (100% Load) | Cylinder- Bore*Stroke | Displacement | Open Type | Silent Type | ||
| KW | KVA | KW | KVA | rpm | KW | L/H | MM | L | CM | CM | ||
| DAC-YD9.5 | 6.8 | 8.5 | 7 | 9 | Y480BD | 1500 | 10 | 2.6 | 3L-80x90 | 1.357 | 126x80x110 | 170x84x110 |
| DAC-YD11 | 8 | 10 | 9 | 11 | Y480BD | 1500 | 11 | 3 | 3L-85x90 | 1.532 | 126x80x110 | 170x84x110 |
| DAC-YD14 | 10 | 12.5 | 11 | 14 | Y480BD | 1500 | 14 | 4.1 | 4L-80x90 | 1.809 | 130*80*110 | 200*84*116 |
| DAC-YD17 | 12 | 15 | 13 | 17 | Y485BD | 1500 | 17 | 4.35 | 4L-85x90 | 2.043 | 130*80x110 | 200x84x116 |
| DAC-YD22 | 16 | 20 | 18 | 22 | K490D | 1500 | 21 | 6.1 | 4L-90*100 | 2.54 | 133x80x113 | 200x89*128 |
| DAC-YD28 | 20 | 25 | 22 | 28 | K495D | 1500 | 27 | 7.1 | 4L-95*105 | 2.997 | 153x78x115 | 220x89x128 |
| DAC-YD33 | 24 | 30 | 26 | 33 | K4100D | 1500 | 31.5 | 8.4 | 4L-100*118 | 3.707 | 159x78x115 | 220x89*128 |
| DAC-YD41 | 30 | 37.5 | 33 | 41 | K4100ZD | 1500 | 38 | 10.2 | 4L-102x118 | 3.875 | 167x78x115 | 220x89x128 |
| DAC-YD50 | 36 | 45 | 40 | 50 | K4100ZD | 1500 | 48 | 11.9 | 4L-102x118 | 3.875 | 178x85*121 | 230x95*130 |
| DAC-YD55 | 40 | 50 | 44 | 55 | N4105ZD | 1500 | 48 | 13.2 | 4L-102x118 | 3.875 | 178x85x121 | 230x95*130 |
| DAC-YD66 | 48 | 60 | 53 | 66 | N4105ZLD | 1500 | 55 | 14.3 | 4L-105*118 | 4.1 | 195x90x132 | 258x102x138 |
| DAC-YD69 | 50 | 63 | 55 | 69 | N4105ZLD | 1500 | 63 | 16.1 | 4L-105x118 | 4.1 | 195x90x132 | 258x102x138 |
| 60HZ | ||||||||||||
| Genset Performance | Engine Performance | Dimension(L*W*H) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Genset Model | Prime Power | Standby Power | Engine model | Speed | Prime power | Fuel Cons (100% Load) | Cylinder- Bore*Stroke | Displacement | Open Type | Silent Type | ||
| KW | KVA | KW | KVA | rpm | KW | L/H | MM | L | CM | CM | ||
| DAC-YD11 | 8 | 10 | 8.8 | 11 | Y480BD | 1800 | 12 | 3.05 | 3L-80x90 | 1.357 | 126*80x110 | 170x84x110 |
| DAC-YD14 | 10 | 12.5 | 11 | 13.75 | Y480BD | 1800 | 13 | 3.6 | 3L-85x90 | 1.532 | 126*80x110 | 170x84*110 |
| DAC-YD17 | 12 | 15 | 13.2 | 16.5 | Y480BD | 1800 | 17 | 4.4 | 4L-80x90 | 1.809 | 130*80x110 | 200x84x116 |
| DAC-YD22 | 16 | 20 | 17.6 | 22 | Y480BD | 1800 | 20 | 5.8 | 4L-85x95 | 2.156 | 130x80x110 | 200x84*116 |
| DAC-YD28 | 20 | 25 | 22 | 27.5 | Y485BD | 1800 | 25 | 7.2 | 4L-90x100 | 2.54 | 133*80x113 | 200x89x128 |
| DAC-YD33 | 24 | 30 | 26.4 | 33 | Y485BD | 1800 | 30 | 8.4 | 4L-95*105 | 2.997 | 153x78x115 | 220x89x128 |
| DAC-YD41 | 30 | 37.5 | 33 | 41.25 | K490D | 1800 | 40 | 10 | 4L-102x118 | 3.875 | 159*78x115 | 220x89*128 |
| DAC-YD44 | 32 | 40 | 35.2 | 44 | K4100D | 1800 | 40 | 11 | 4L-102x118 | 3.875 | 167x78x115 | 220x89x128 |
| DAC-YD50 | 36 | 45 | 39.6 | 49.5 | K4102D | 1800 | 48 | 11.7 | 4L-102x118 | 3.875 | 167x78x115 | 220x89x128 |
| DAC-YD55 | 40 | 50 | 44 | 55 | K4100ZD | 1800 | 48 | 13 | 4L-102x118 | 3.875 | 178x85x121 | 230x95*130 |
| DAC-YD63 | 45 | 56 | 49.5 | 61.875 | K4102ZD | 1800 | 53 | 14 | 4L-102x118 | 3.875 | 178x85*121 | 230x95x130 |
| DAC-YD69 | 50 | 62.5 | 55 | 68.75 | N4105ZD | 1800 | 60 | 15.5 | 4L-105*118 | 4.1 | 195x90x132 | 258x102*138 |
| DAC-YD80 | 58 | 72.5 | 63.8 | 79.75 | N4105ZLD | 1800 | 70 | 17.5 | 4L-105x118 | 4.1 | 195x90x132 | 258x102x138 |
Product Description
Yangdong water-cooled series diesel generator sets operate at 1500 or 1800 rpm, providing stable and efficient power output. Featuring high-quality alternators from well-known brands such as Stamford, Leroy-Somer, Marathon and MeccAlte, you can rely on the reliability and efficiency of these generator sets.
YANGDONG water-cooled series diesel generator sets have IP22-23 protection grade and F/H insulation grade, designed to withstand harsh environmental conditions while ensuring safety and service life. They operate at 50 or 60Hz and are compatible with a variety of electrical systems.
For enhanced control and monitoring capabilities, these generator sets are equipped with top-notch controllers from leading brands such as Deepsea, Comap, SmartGen, Mebay, DATAKOM and more. In addition, Yangdong water-cooled series diesel generator sets can be seamlessly integrated with automatic transfer switch (ATS) systems such as AISIKA1 and YUYE to ensure uninterrupted power supply in the event of grid failure.
