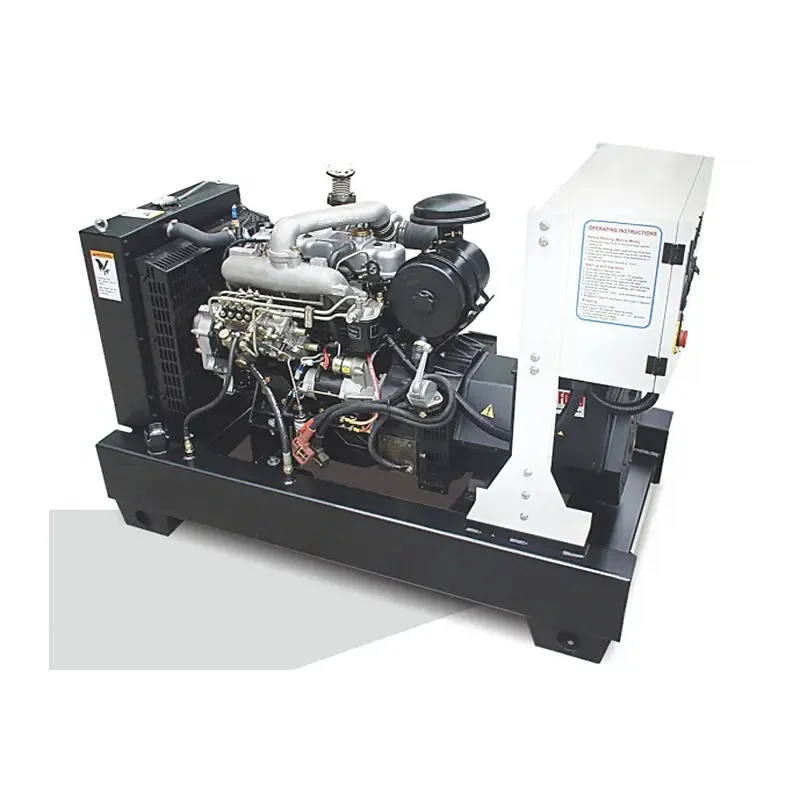

1 / 1YANMAR water-cooled series diesel generator sets
share
Powercoveragefrom: 27.5-137.5KVA/9.5~75KVA
Model: Open type/Silent/Super silent type
Engine: ISUZU/YANMAR
Speed: 1500/1800rpm
Alternator: Stamford/Leroy Somer/Marathon/Mecc Alte
IP&Insulation Class: IP22-23&F/H
Frequency: 50/60Hz
Controller: Deepsea/Comap/SmartGen/Mebay/DATAKOM/Others
ATS System: AISIKAI/YUYE/Others
Silent&Super silent Gen-set Sound level: 63-75dB(A)(at 7m side)
Technical Data
| YANMAR SERIES 50HZ | ||||||||||||
| Genset Performance | Engine Performance | Dimension(L*W*H) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Genset Model | Prime Power | Standby Power | Engine model | Speed | Prime power | Fuel Cons (100% Load) | Cylinder- Bore*Stroke | Displacement | Open Type | Silent Type | ||
| KW | KVA | KW | KVA | rpm | KW | L/H | MM | L | CM | CM | ||
| DAC-YM9.5 | 6.8 | 8.5 | 7 | 9 | 3TNV76-GGE | 1500 | 8.2 | 2.5 | 3L-76*82 | 1.116 | 111*73*95 | 180*84*115 |
| DAC-YM12 | 8.8 | 11 | 10 | 12 | 3TNV82A-GGE | 1500 | 9.9 | 2.86 | 3L-82*84 | 1.331 | 113*73*95 | 180*84*115 |
| DAC-YM14 | 10 | 12.5 | 11 | 14 | 3TNV88-GGE | 1500 | 12.2 | 3.52 | 3L-88*90 | 1.642 | 123*73*102 | 180*84*115 |
| DAC-YM20 | 14 | 17.5 | 15 | 19 | 4TNV88-GGE | 1500 | 16.4 | 4.73 | 4L-88*90 | 2.19 | 143*73*105 | 190*84*128 |
| DAC-YM22 | 16 | 20 | 18 | 22 | 4TNV84T-GGE | 1500 | 19.1 | 5.5 | 4L-84*90 | 1.995 | 145*73*105 | 190*84*128 |
| DAC-YM28 | 20 | 25 | 22 | 28 | 4TNV98-GGE | 1500 | 30.7 | 6.8 | 4L-98*110 | 3.319 | 149*73*105 | 200*89*128 |
| DAC-YM33 | 24 | 30 | 26 | 33 | 4TNV98-GGE | 1500 | 30.7 | 8.5 | 4L-98*110 | 3.319 | 149*73*105 | 200*89*128 |
| DAC-YM41 | 30 | 37.5 | 33 | 41 | 4TNV98T-GGE | 1500 | 37.7 | 8.88 | 4L-98*110 | 3.319 | 155*73*110 | 210*89*128 |
| DAC-YM44 | 32 | 40 | 35 | 44 | 4TNV98T-GGE | 1500 | 37.7 | 9.8 | 4L-98*110 | 3.319 | 155*73*110 | 210*89*128 |
| DAC-YM50 | 36 | 45 | 40 | 50 | 4TNV106-GGE | 1500 | 44.9 | 11.5 | 4L-106*125 | 4.412 | 180*85*130 | 240*102*138 |
| DAC-YM55 | 40 | 50 | 44 | 55 | 4TNV106-GGE | 1500 | 44.9 | 12.6 | 4L-106*125 | 4.412 | 180*85*130 | 240*102*138 |
| DAC-YM63 | 45 | 56 | 50 | 62 | 4TNV106T-GGE | 1500 | 50.9 | 13.2 | 4L-106*125 | 4.412 | 189*85*130 | 250*102*138 |
| YANMAR SERIES 60HZ | ||||||||||||
| Genset Performance | Engine Performance | Dimension(L*W*H) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Genset Model | Prime Power | Standby Power | Engine model | Speed | Prime power | Fuel Cons (100% Load) | Cylinder- Bore*Stroke | Displacement | Open Type | Silent Type | ||
| KW | KVA | KW | KVA | rpm | KW | L/H | MM | L | CM | CM | ||
| DAC-YM11 | 8 | 10 | 8.8 | 11 | 3TNV76-GGE | 1800 | 9.8 | 2.98 | 3L-76*82 | 1.116 | 111*73*95 | 180*84*115 |
| DAC-YM14 | 10 | 12.5 | 11 | 13.75 | 3TNV82A-GGE | 1800 | 12 | 3.04 | 3L-82*84 | 1.331 | 113*73*95 | 180*84*115 |
| DAC-YM17 | 12 | 15 | 13.2 | 16.5 | 3TNV88-GGE | 1800 | 14.7 | 4.24 | 3L-88*90 | 1.642 | 123*73*102 | 180*84*115 |
| DAC-YM22 | 16 | 20 | 17.6 | 22 | 4TNV88-GGE | 1800 | 19.6 | 5.65 | 4L-88*90 | 2.19 | 143*73*105 | 190*84*128 |
| DAC-YM28 | 20 | 25 | 22 | 27.5 | 4TNV84T-GGE | 1800 | 24.2 | 6.98 | 4L-84*90 | 1.995 | 145*73*105 | 190*84*128 |
| DAC-YM33 | 24 | 30 | 26.4 | 33 | 4TNV98-GGE | 1800 | 36.4 | 8.15 | 4L-98*110 | 3.319 | 149*73*105 | 200*89*128 |
| DAC-YM41 | 30 | 37.5 | 33 | 41.25 | 4TNV98-GGE | 1800 | 36.4 | 9.9 | 4L-98*110 | 3.319 | 149*73*105 | 200*89*128 |
| DAC-YM50 | 36 | 45 | 39.6 | 49.5 | 4TNV98T-GGE | 1800 | 45.3 | 11 | 4L-98*110 | 3.319 | 155*73*110 | 210*89*128 |
| DAC-YM55 | 40 | 50 | 44 | 55 | 4TNV98T-GGE | 1800 | 45.3 | 11.8 | 4L-98*110 | 3.319 | 155*73*110 | 210*89*128 |
| DAC-YM63 | 45 | 56 | 49.5 | 61.875 | 4TNV106-GGE | 1800 | 53.3 | 14 | 4L-106*125 | 4.412 | 180*85*130 | 240*102*138 |
| DAC-YM66 | 48 | 60 | 52.8 | 66 | 4TNV106-GGE | 1800 | 53.3 | 15 | 4L-106*125 | 4.412 | 180*85*130 | 240*102*138 |
| DAC-YM75 | 54 | 67.5 | 59.4 | 74.25 | 4TNV106T-GGE | 1800 | 60.9 | 15.8 | 4L-106*125 | 4.412 | 189*85*130 | 250*102*138 |
Product Description
Our YANMAR water-cooled range offers a wide range of diesel generator sets catering to power requirements from 27.5 to 137.5 KVA or 9.5 to 75 KVA.
As the core of our generator sets, we rely on high-quality YANMAR engines, known for their reliability, durability and efficient operation. These engines are designed for continuous heavy-duty use, ensuring stable power output even under demanding conditions.
To complement engine performance, we work with well-known alternator manufacturers such as Stanford, Leroy-Somer, Marathon and Me Alte. Our generator sets use these reliable alternators to provide stable, clean power that meets international standards.
The YANMAR water-cooled series has IP22-23 and F/H insulation levels, ensuring excellent dustproof and waterproof performance, and is suitable for a variety of industries and environments. These generator sets can operate at 50 or 60Hz frequencies and integrate seamlessly with existing power systems. For added convenience and automatic power transfer, our YANMAR water-cooled range can be equipped with an ATS (Automatic Transfer Switch) system.
Recognizing the importance of noise reduction, our generator sets are designed to operate silently, with noise levels of 63 to 75 dB(A) at a distance of 7 meters. This ensures minimal disruption to homes and noise-sensitive areas.
