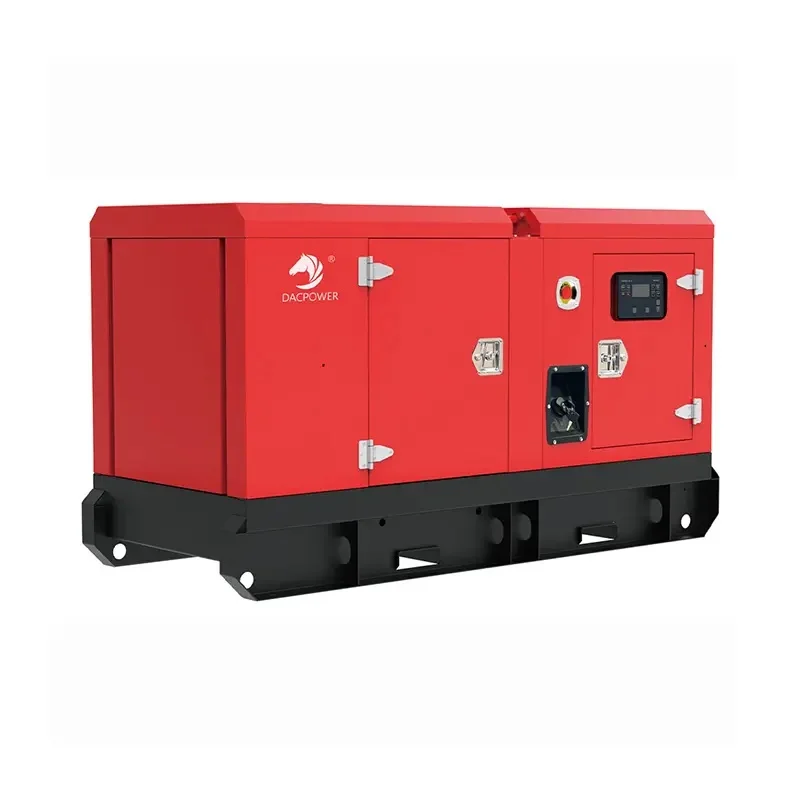

1 / 1RICARDO water-cooled series diesel generator sets
share
● Full control panel with power indicator light and oil light
● Emergency shutdown for low oil pressure and high water temperture
● Low noice & vibration level
● Compact structure
● Reliable performance
● Easy for installation and maintenance
● 50Hz and 60Hz are both available for choice
Technical Data
| 50HZ | ||||||||||||
| Genset Performance | Engine Performance | Dimension(L*W*H) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Genset Model | Prime Power | Standby Power | Engine model | Speed | Prime power | Fuel Cons (100% Load) | Cylinder- Bore*Stroke | Displacement | Open Type | Silent Type | ||
| KW | KVA | KW | KVA | rpm | KW | L/H | MM | L | CM | CM | ||
| DAC-W11 | 8 | 10 | 9 | 11 | Y480BD | 1500 | 14 | 2.9 | 4-80*90 | 1.81 | 130*78*96 | 180*89*110 |
| DAC-W14 | 10 | 12.5 | 11 | 14 | Y480BD | 1500 | 14 | 3.62 | 4-80*90 | 1.81 | 130*78*96 | 180*89*110 |
| DAC-W17 | 12 | 15 | 13 | 17 | Y480BD | 1500 | 14 | 4.35 | 4-80*90 | 1.81 | 130*78*96 | 180*89*110 |
| DAC-W21 | 15 | 18.75 | 17 | 21 | Y485BD | 1500 | 17 | 4.94 | 4-85*90 | 2.04 | 130*78*96 | 180*89*110 |
| DAC-W22 | 16 | 20 | 18 | 22 | K490D | 1500 | 22 | 5 | 4-90*100 | 2.672 | 130*78*107 | 200*89*128 |
| DAC-W28 | 20 | 25 | 22 | 28 | K495D | 1500 | 26 | 7.3 | 4-95*115 | 3.26 | 153*78*115 | 220*89*128 |
| DAC-W33 | 24 | 30 | 26 | 33 | K4100D | 1500 | 30 | 9.12 | 4-100*115 | 3.61 | 159*78*115 | 220*89*128 |
| DAC-W41 | 30 | 37.5 | 33 | 41 | K4100ZD | 1500 | 40 | 12.77 | 4-100*115 | 3.61 | 167*78*115 | 220*89*128 |
| DAC-W44 | 32 | 40 | 35 | 44 | K4100ZD | 1500 | 40 | 12.77 | 4-100*115 | 3.61 | 167*78*115 | 220*89*128 |
| DAC-W55 | 40 | 50 | 44 | 55 | N4105ZD | 1500 | 53 | 14.64 | 4-105*120 | 4.15 | 178*85*121 | 230*95*130 |
| DAC-W69 | 50 | 62.5 | 55 | 69 | N4105ZLD | 1500 | 63 | 17 | 4-105*120 | 4.15 | 186*90*121 | 240*102*130 |
| DAC-W72 | 52 | 65 | 57 | 72 | N4105ZLD | 1500 | 63 | 17.56 | 4-105*120 | 4.15 | 186*90*121 | 240*102*130 |
| DAC-W80 | 58 | 72.5 | 64 | 80 | R4105ZLD | 1500 | 66 | 17.94 | 4-105*125 | 3.76 | 195*90*132 | 258*102*138 |
| DAC-W88 | 64 | 80 | 70 | 88 | R4108IZD | 1500 | 75 | 19.8 | 4-108*135 | 4.95 | 199*100*135 | 270*102*152 |
| DAC-W103 | 75 | 93.75 | 83 | 103 | R4108IZLD | 1500 | 84 | 21.3 | 4-108*135 | 4.95 | 199*100*135 | 270*102*152 |
| DAC-W110 | 80 | 100 | 88 | 110 | R6105AZD | 1500 | 100 | 24.5 | 6-105*135 | 7.01 | 229*100*158 | 280*105*160 |
| DAC-W132 | 96 | 120 | 106 | 132 | R6105AZLD | 1500 | 110 | 29.9 | 6-105*130 | 6.75 | 228*100*158 | 280*105*160 |
| DAC-W165 | 120 | 150 | 132 | 165 | R6105IZLD | 1500 | 132 | 35.88 | 6-105*135 | 7.01 | 238*100*158 | 300*105*160 |
| DAC-W200 | 144 | 180 | 158 | 198 | R6108ZLD | 1500 | 170 | 45.6 | 6-108*135 | 7.41 | 235*103*160 | 340*110*128 |
| DAC-W220 | 160 | 200 | 176 | 220 | 6126-68DE | 1500 | 190 | 50.6 | 6-126*130 | 9.73 | 273*105*172 | 395*112*190 |
| DAC-W250 | 180 | 225 | 198 | 248 | 6126-42DE | 1500 | 210 | 53.12 | 6-126*130 | 9.73 | 279*105*172 | 395*112*190 |
| DAC-W275 | 200 | 250 | 220 | 275 | 6126A-260DE | 1500 | 230 | 58.2 | 6-126*135 | 10.1 | 279*105*172 | 395*112*190 |
| DAC-W300 | 220 | 275 | 242 | 303 | 6126A-275DE | 1500 | 250 | 63.2 | 6-126*135 | 10.25 | 279*105*172 | 395*112*190 |
| DAC-W344 | 250 | 312.5 | 275 | 344 | WT12D-308 | 1500 | 288 | 72.85 | 6-126*155 | 11.6 | 300*115*180 | 420*140*215 |
| DAC-W385 | 280 | 350 | 308 | 385 | WT13-330DE | 1500 | 330 | 85.7 | 6-131*160 | 12.94 | 307*126*195 | 435*160*223 |
| DAC-W413 | 300 | 375 | 330 | 413 | WT13-330DE | 1500 | 330 | 91.3 | 6-131*160 | 12.94 | 316*126*201 | 435*160*223 |
| DAC-W440 | 320 | 400 | 352 | 440 | WT13-360DE | 1500 | 360 | 99.5 | 6-131*160 | 12.94 | 316*126*201 | 435*160*223 |
| DAC-W480 | 350 | 437.5 | 385 | 481 | WT13A-390DE | 1500 | 390 | 108 | 6-131*165 | 13.4 | 316*126*201 | 435*160*223 |
| 60HZ | ||||||||||||
| Genset Performance | Engine Performance | Dimension(L*W*H) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Genset Model | Prime Power | Standby Power | Engine model | Speed | Prime power | Fuel Cons (100% Load) | Cylinder- Bore*Stroke | Displacement | Open Type | Silent Type | ||
| KW | KVA | KW | KVA | rpm | KW | L/H | MM | L | CM | CM | ||
| DAC-W11 | 8 | 10 | 8.8 | 11 | Y480BD | 1800 | 17 | 2.9 | 4-80*90 | 1.81 | 130*78*96 | 180*89*110 |
| DAC-W14 | 10 | 12.5 | 11 | 13.75 | Y480BD | 1800 | 17 | 3.62 | 4-80*90 | 1.81 | 130*78*96 | 180*89*110 |
| DAC-W17 | 12 | 15 | 13.2 | 16.5 | Y480BD | 1800 | 17 | 4.07 | 4-80*90 | 1.81 | 130*78*96 | 180*89*110 |
| DAC-W21 | 15 | 18.75 | 16.5 | 20.625 | Y480BD | 1800 | 17 | 4.94 | 4-80*90 | 1.81 | 130*78*96 | 180*89*110 |
| DAC-W22 | 16 | 20 | 17.6 | 22 | Y485BD | 1800 | 20 | 5.76 | 4-85*90 | 2.04 | 130*78*96 | 180*89*110 |
| DAC-W25 | 18 | 22.5 | 19.8 | 24.75 | Y485BD | 1800 | 20 | 5.82 | 4-85*90 | 2.04 | 130*78*96 | 180*89*110 |
| DAC-W28 | 20 | 25 | 22 | 27.5 | K490D | 1800 | 26 | 6.3 | 4-90*100 | 2.672 | 130*78*107 | 200*89*128 |
| DAC-W33 | 24 | 30 | 26.4 | 33 | K4100D | 1800 | 34 | 8.5 | 4-100*115 | 3.61 | 167*78*115 | 220*89*128 |
| DAC-W41 | 30 | 37.5 | 33 | 41.25 | K4102D | 1800 | 36 | 10.94 | 4-102*115 | 3.76 | 167*78*115 | 220*89*128 |
| DAC-W50 | 36 | 45 | 39.6 | 49.5 | K4100ZD | 1800 | 45 | 12.77 | 4-100*115 | 3.61 | 167*78*115 | 220*89*128 |
| DAC-W55 | 40 | 50 | 44 | 55 | K4102ZD | 1800 | 50 | 14.6 | 4-102*115 | 3.76 | 167*78*115 | 220*89*128 |
| DAC-W66 | 48 | 60 | 52.8 | 66 | N4105ZD | 1800 | 60 | 16.98 | 4-105*120 | 4.15 | 178*85*121 | 230*95*130 |
| DAC-W80 | 58 | 72.5 | 63.8 | 79.75 | N4105ZLD | 1800 | 72 | 19.9 | 4-105*120 | 4.15 | 186*90*121 | 240*102*130 |
| DAC-W88 | 64 | 80 | 70.4 | 88 | R4105ZLD | 1800 | 75 | 20.4 | 4-105*125 | 3.76 | 195*90*132 | 258*102*138 |
| DAC-W103 | 75 | 93.75 | 82.5 | 103.125 | R4108IZLD | 1800 | 84 | 21.3 | 4-108*135 | 4.95 | 199*100*135 | 270*102*152 |
| DAC-W110 | 80 | 100 | 88 | 110 | R6105ZD | 1800 | 88 | 21.6 | 6-105*125 | 6.49 | 199*100*135 | 270*102*152 |
| DAC-W125 | 90 | 112.5 | 99 | 123.75 | R6105AZD | 1800 | 110 | 29.87 | 6-105*135 | 7.01 | 199*100*135 | 270*102*152 |
| DAC-W138 | 100 | 125 | 110 | 137.5 | R6105AZLD | 1800 | 121 | 31.5 | 6-105*130 | 6.75 | 229*100*158 | 280*105*160 |
| DAC-W165 | 120 | 150 | 132 | 165 | R6105IZLD | 1800 | 140 | 38.05 | 6-105*135 | 7.01 | 238*100*158 | 300*105*160 |
| DAC-W206 | 150 | 187.5 | 165 | 206.25 | R6108ZLD | 1800 | 185 | 45.6 | 6-108*135 | 7.41 | 235*103*160 | 340*110*128 |
| DAC-W220 | 160 | 200 | 176 | 220 | R6108ZLD1 | 1800 | 185 | 51.2 | 6-108*135 | 7.41 | 235*103*160 | 340*110*128 |
| DAC-W250 | 180 | 225 | 198 | 247.5 | 6126-68DE | 1800 | 210 | 53.12 | 6-126*130 | 9.73 | 273*105*172 | 395*112*190 |
| DAC-W275 | 200 | 250 | 220 | 275 | 6126-42DE | 1800 | 240 | 56.9 | 6-126*130 | 9.73 | 279*105*172 | 395*112*190 |
| DAC-W300 | 220 | 275 | 242 | 302.5 | 6126A-260DE | 1800 | 260 | 60.7 | 6-126*135 | 10.1 | 279*105*172 | 395*112*190 |
| DAC-W325 | 240 | 300 | 264 | 330 | 6126A-275DE | 1800 | 275 | 65.8 | 6-126*135 | 10.25 | 279*105*172 | 395*112*190 |
| DAC-W350 | 260 | 325 | 286 | 357.5 | WT12D-308 | 1800 | 300 | 72.85 | 6-126*155 | 11.59 | 300*115*180 | 420*140*215 |
| DAC-W413 | 300 | 375 | 330 | 412.5 | WT13-330DE | 1800 | 330 | 91.3 | 6-131*160 | 12.94 | 307*126*195 | 435*160*223 |
| DAC-W450 | 320 | 400 | 352 | 440 | WT13-360DE | 1800 | 360 | 99.5 | 6-131*160 | 12.94 | 316*126*201 | 435*160*223 |
| DAC-W500 | 360 | 450 | 396 | 495 | WT13A-390DE | 1800 | 400 | 108 | 6-131*165 | 13.4 | 316*126*201 | 435*160*223 |
Product Description
One of the outstanding features of the RICARDO water cooling range is the complete control panel. With power indicator light and oil light, you can easily monitor the performance of your generator at any time. In addition, it is also equipped with a low oil pressure and high water temperature emergency shutdown system to ensure the safety and longevity of the generator.
The compact structure of the RICARDO water-cooled series is another reason why it is so popular. It easily fits into small spaces, saving you valuable floor space. Whether it is a small residential project or a large commercial enterprise, the compact construction of these generator sets ensures easy installation without compromising performance.
Reliability is an important factor to consider when choosing a generator. The RICARDO water cooling series excels in this regard. Each generator set undergoes strict quality control measures to ensure best-in-class reliability. Rest assured, you can rely on these generators to provide uninterrupted power anytime, anywhere.
