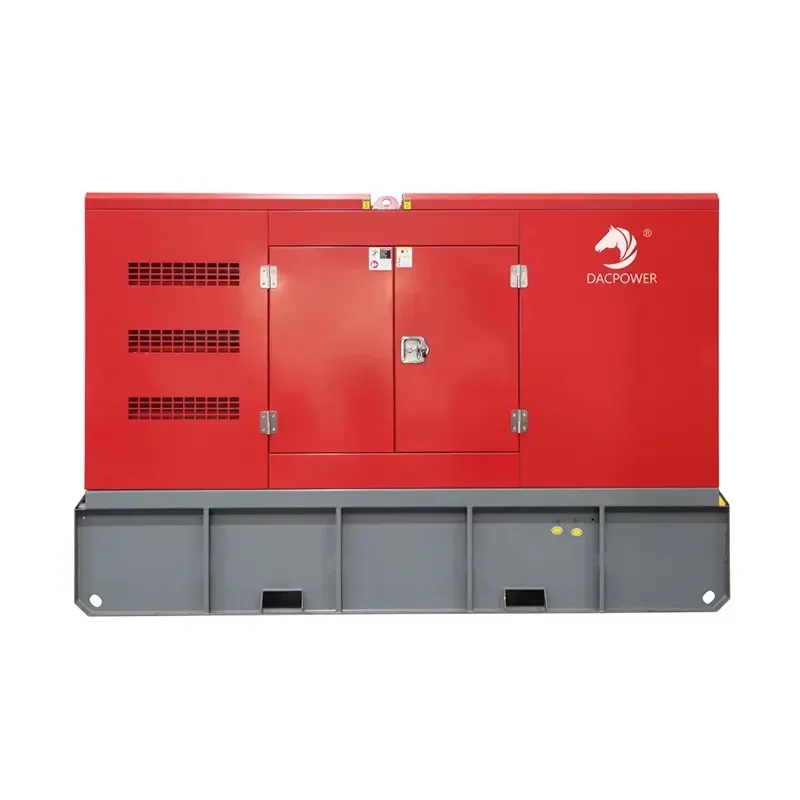

1 / 1Perkins water-cooled series diesel generator sets
share
PERKINS Series are powered by Britian, Chinese, the American and Indian Perkins Engine. For 75 vears Perkins has led the field in the design and manufacture of high-performance diesel engines. The continuous development programme allows it to offer one of the most advanced and comprehensive ranges of purpose-built diesel and gas engines available today. Ranging from 5 to over 2600 HP, the engines power more than 5000 differen applications from over 1000 major equipment manufacturers in the construction, power generation, materials handling agricultural and general industrial markets.
- Brand:
- dacpower
- Model:
- 7.2
- Minimum:
- 1
- Unit:
- piece
parametersBrand: dacpower›
- Brand:
- dacpower
- Model:
- 7.2
- Minimum:
- 1
- Unit:
- piece
Technical Data
| 50HZ | ||||||||||||
| Genset Performance | Engine Performance | Dimension(L*W*H) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Genset Model | Prime Power | Standby Power | Engine model | Speed | Prime power | Fuel Cons (100% Load) | Cylinder- Bore*Stroke | Displacement | Open Type | Silent Type | ||
| KW | KVA | KW | KVA | rpm | KW | L/H | MM | L | CM | CM | ||
| DAC-P10 | 7.2 | 9 | 8 | 10 | 403D-11G | 1500 | 8.6 | 2.6 | 3L-77*81 | 1.131 | 115*74*99 | 180*84*110 |
| DAC-P14 | 10 | 12.5 | 11 | 14 | 403A-15G1 | 1500 | 12.2 | 3.7 | 3L-84*90 | 1.496 | 115*74*99 | 180*84*110 |
| DAC-P17 | 12 | 15 | 13.2 | 16.5 | 403A-15G2 | 1500 | 14 | 5 | 3L-84*90 | 1.496 | 115*74*99 | 180*84*110 |
| DAC-P22 | 16 | 20 | 17.6 | 22 | 404A-22G1 | 1500 | 18.7 | 5.3 | 4L-84*100 | 2.216 | 127*74*101 | 180*84*110 |
| DAC-P30 | 22 | 27.5 | 24.2 | 30 | 404D-22TG | 1500 | 25.2 | 7.1 | 4L-84*100 | 2.216 | 136*74*101 | 180*84*110 |
| DAC-P33 | 24 | 30 | 26.4 | 33 | 1103A-33G | 1500 | 28.2 | 7.2 | 3L-105*127 | 3.3 | 152*80*122 | 230*102*128 |
| DAC-P50 | 36 | 45 | 39.6 | 50 | 1103A-33TG1 | 1500 | 42.2 | 10.8 | 3L-105*127 | 3.3 | 161*80*122 | 230*102*128 |
| DAC-P66 | 48 | 60 | 52.8 | 66 | 1103A-33TG2 | 1500 | 55 | 14.6 | 3L-105*127 | 3.3 | 169*80*122 | 230*102*128 |
| DAC-P72 | 52 | 65 | 57.2 | 72 | 1104A-44TG1 | 1500 | 59.6 | 14.8 | 4L-105*127 | 4.4 | 181*80*124 | 240*102*128 |
| DAC-P88 | 64 | 80 | 70.4 | 88 | 1104A-44TG2 | 1500 | 73.4 | 18.7 | 4L-105*127 | 4.4 | 185*80*124 | 240*102*128 |
| DAC-P110 | 80 | 100 | 88 | 110 | 1104C-44TAG2 | 1500 | 93.6 | 22.6 | 4L-105*127 | 4.41 | 188*85*124 | 272*108*170 |
| DAC-P150 | 108 | 135 | 118.8 | 150 | 1106A-70TG1 | 1500 | 122.7 | 30.2 | 6L-105*135 | 7.01 | 224*90*141 | 330*110*170 |
| DAC-P165 | 120 | 150 | 132 | 165 | 1106A-70TAG2 | 1500 | 136 | 33.4 | 6L-105*135 | 7.01 | 224*90*141 | 330*110*170 |
| DAC-P200 | 144 | 180 | 158.4 | 200 | 1106A-70TAG3 | 1500 | 163.9 | 41.6 | 6L-105*135 | 7.01 | 230*90*141 | 340*110*170 |
| DAC-P220 | 160 | 200 | 176 | 220 | 1106A-70TAG4 | 1500 | 178.9 | 45.8 | 6L-105*135 | 7.01 | 235*90*141 | 340*110*170 |
| DAC-P250 | 180 | 225 | 198 | 250 | 1506A-E88TAG2 | 1500 | 204 | 51 | 6L-112*149 | 8.8 | 262*110*162 | 360*130*190 |
| DAC-P275 | 200 | 250 | 220 | 275 | 1506A-E88TAG3 | 1500 | 222 | 56 | 6L-112*149 | 8.8 | 262*110*162 | 360*130*190 |
| DAC-P300 | 220 | 275 | 240 | 300 | 1506A-E88TAG4 | 1500 | 244 | 60 | 6L-112*149 | 8.8 | 273*110*162 | 380*130*190 |
| DAC-P330 | 240 | 300 | 264 | 330 | 1506A-E88TAG5 | 1500 | 267 | 65 | 6L-112*149 | 8.8 | 273*110*162 | 380*130*190 |
| DAC-P385 | 280 | 350 | 308 | 385 | 2206C-E13TAG2 | 1500 | 324 | 75 | 6L-130*157 | 12.5 | 299*120*185 | 420*140*223 |
| DAC-P450 | 320 | 400 | 360 | 450 | 2206C-E13TAG3 | 1500 | 368 | 85 | 6L-130*157 | 12.5 | 308*120*185 | 430*140*223 |
| DAC-P500 | 360 | 450 | 400 | 500 | 2506C-E15TAG1 | 1500 | 412 | 99 | 6L-137*171 | 15.2 | 345*120*198 | 470*160*223 |
| DAC-P550 | 400 | 500 | 440 | 550 | 2506C-E15TAG2 | 1500 | 451 | 106 | 6L-137*171 | 15.2 | 345*120*198 | 470*160*223 |
| DAC-P660 | 480 | 600 | 528 | 660 | 2806C-E18TAG1A | 1500 | 532 | 129 | 6L-145*183 | 18.1 | 335*154*202 | 500*180*253 |
| DAC-P720 | 520 | 650 | 576 | 720 | 2806A-E18TAG2 | 1500 | 584 | 132 | 6L-145*183 | 18.1 | 341*154*202 | 500*180*253 |
| DAC-P825 | 600 | 750 | 660 | 825 | 4006-23TAG2A | 1500 | 658 | 157 | 6L-160*190 | 22.921 | 402*171*221 | 580*200*253 |
| DAC-P880 | 640 | 800 | 704 | 880 | 4006-23TAG3A | 1500 | 705 | 172 | 6L-160*190 | 22.921 | 402*171*221 | 580*200*253 |
| DAC-P1000 | 728 | 900 | 800 | 1000 | 4008TAG1A | 1500 | 805 | 195 | 8L-160*190 | 30.561 | 470*205*235 | 680*228*256 |
| DAC-P1125 | 820 | 1025 | 900 | 1125 | 4008TAG2A | 1500 | 899 | 215 | 8L-160*190 | 30.561 | 470*205*235 | 680*228*256 |
| DAC-P1375 | 1000 | 1250 | 1100 | 1375 | 4012-46TWG2A | 1500 | 1113 | 259 | 12V-160*190 | 45.842 | 485*205*252 | 40 feet high container |
| DAC-P1650 | 1200 | 1500 | 1320 | 1650 | 4012-46TAG2A | 1500 | 1331 | 310 | 12V-160*190 | 45.842 | 485*205*252 | |
| DAC-P1875 | 1360 | 1700 | 1500 | 1875 | 4012-46TAG3A | 1500 | 1500 | 370 | 12V-160*190 | 45.842 | 497*205*252 | |
| DAC-P2000 | 1480 | 1850 | 1600 | 2000 | 4016-61TRG1 | 1500 | 1648 | 371 | 16V-160*190 | 61.123 | 634*220*268 | / |
| DAC-P2200 | 1600 | 2000 | 1760 | 2200 | 4016-61TRG2 | 1500 | 1774 | 405 | 16V-160*190 | 61.123 | 624*220*268 | / |
| DAC-P2500 | 1800 | 2250 | 2000 | 2500 | 4016-61TRG3 | 1500 | 1975 | 470 | 16V-160*190 | 61.123 | 625*220*268 | / |
| 60HZ | ||||||||||||
| Genset Performance | Engine Performance | Dimension(L*W*H) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Genset Model | Prime Power | Standby Power | Engine model | Speed | Prime power | Fuel Cons (100% Load) | Cylinder- Bore*Stroke | Displacement | Open Type | Silent Type | ||
| KW | KVA | KW | KVA | rpm | KW | L/H | MM | L | CM | CM | ||
| DAC-P13 | 9 | 11.25 | 10 | 12.5 | 403D-11G | 1800 | 10.7 | 3 | 3L-77*81 | 1.131 | 115*74*99 | 180*84*110 |
| DAC-P17 | 12 | 15 | 13.2 | 16.5 | 403D-15G | 1800 | 14.7 | 4.27 | 3L-84*90 | 1.496 | 115*74*99 | 180*84*110 |
| DAC-P20 | 14.4 | 18 | 16 | 20 | 403A-15G2 | 1800 | 16 | 5 | 3L-84*90 | 1.496 | 115*74*99 | 180*84*110 |
| DAC-P28 | 20 | 25 | 22 | 27.5 | 404D-22G | 1800 | 22 | 6.2 | 4L-84*100 | 2.216 | 127*74*101 | 180*84*110 |
| DAC-P33 | 24 | 30 | 26.4 | 33 | 404D-22TG | 1800 | 30.3 | 8.3 | 4L-84*100 | 2.216 | 136*74*101 | 180*84*1100 |
| DAC-P39 | 28 | 35 | 30.8 | 38.5 | 1103A-33G | 1800 | 33.2 | 8.6 | 3L-105*127 | 3.3 | 152*80*122 | 230*102*128 |
| DAC-P60 | 43 | 54 | 48 | 60 | 1103A-33TG1 | 1800 | 50.5 | 12.9 | 3L-105*127 | 3.3 | 161*80*122 | 230*102*128 |
| DAC-P75 | 54 | 67.5 | 60 | 75 | 1103A-33TG2 | 1800 | 63.3 | 16.6 | 3L-105*127 | 3.3 | 169*80*122 | 230*102*128 |
| DAC-P83 | 60 | 75 | 66 | 82.5 | 1104A-44TG1 | 1800 | 70.7 | 17.7 | 4L-105*127 | 4.4 | 181*80*124 | 240*102*128 |
| DAC-P103 | 75 | 93.75 | 82.5 | 103 | 1104A-44TG2 | 1800 | 84.5 | 22.3 | 4L-105*127 | 4.4 | 185*80*124 | 240*102*128 |
| DAC-P125 | 90 | 112.5 | 100 | 125 | 1104C-44TAG2 | 1800 | 106.8 | 26.9 | 4L-105*127 | 4.41 | 188*85*124 | 272*108*170 |
| DAC-P165 | 120 | 150 | 132 | 165 | 1106A-70TG1 | 1800 | 140.5 | 35.2 | 6L-105*135 | 7.01 | 224*90*141 | 330*110*170 |
| DAC-P188 | 135 | 169 | 150 | 187.5 | 1106A-70TAG2 | 1800 | 155 | 38.2 | 6L-105*135 | 7.01 | 224*90*141 | 330*110*170 |
| DAC-P220 | 160 | 200 | 176 | 220 | 1106A-70TAG3 | 1800 | 180.5 | 46.4 | 6L-105*135 | 7.01 | 230*90*141 | 340*110*170 |
| DAC-P270 | 196 | 245 | 216 | 270 | 1506A-E88TAG2 | 1800 | 218 | 56 | 6L-112*149 | 8.8 | 262*110*162 | 360*130*190 |
| DAC-P310 | 225 | 281 | 248 | 310 | 1506A-E88TAG3 | 1800 | 250 | 63 | 6L-112*149 | 8.8 | 262*110*162 | 360*130*190 |
| DAC-P385 | 280 | 350 | 308 | 385 | 1506A-E88TAG5 | 1800 | 300 | 77 | 6L-112*149 | 8.8 | 273*110*162 | 380*130*190 |
| DAC-P440 | 320 | 400 | 352 | 440 | 2206A-E13TAG2 | 1800 | 373 | 81 | 6L-130*157 | 12.5 | 299*120*185 | 420*140*223 |
| DAC-P550 | 400 | 500 | 440 | 550 | 2506C-E15TAG1 | 1800 | 453 | 106 | 6L-137*171 | 15.2 | 345*120*198 | 470*160*223 |
| DAC-P688 | 500 | 625 | 550 | 687.5 | 2806C-E18TAG1A | 1800 | 568 | 130 | 6L-145*183 | 18.1 | 335*154*202 | 500*180*253 |
| DAC-P825 | 600 | 750 | 660 | 825 | 4006-23TAG2A | 1800 | 684 | 177 | 6L-160*190 | 22.921 | 402*171*221 | 580*200*253 |
| DAC-P935 | 680 | 850 | 748 | 935 | 4006-23TAG3A | 1800 | 759 | 200 | 6L-160*190 | 22.921 | 402*171*221 | 580*200*253 |
| DAC-P1100 | 800 | 1000 | 880 | 1100 | 4008TAG2 | 1800 | 898 | 224 | 8L-160*190 | 30.561 | 470*205*235 | 680*228*256 |
| DAC-P1375 | 1000 | 1250 | 1100 | 1375 | 4012-46TWG2A | 1800 | 1113 | 266 | 12V-160*190 | 45.842 | 485*205*252 | 40 feet high container |
| DAC-P1650 | 1200 | 1500 | 1320 | 1650 | 4012-46TAG2A | 1800 | 1332 | 319 | 12V-160*190 | 45.842 | 485*205*252 | |
| DAC-P1875 | 1360 | 1700 | 1500 | 1875 | 4012-46TAG3A | 1800 | 1500 | 361 | 12V-160*190 | 45.842 | 497*205*252 | |
Product Description
Perkins water-cooled range of diesel generator sets with a wide range of power output options, customers can choose a generator set that perfectly matches their specific requirements. Additionally, these generator sets are designed with ease of use and maintenance in mind, with user-friendly controls and accessible service points. This makes installation, operation and maintenance a breeze, saving time and minimizing downtime for end users.
Water-cooled series diesel generator sets are designed to comply with strict emission regulations to ensure cleaner and more environmentally friendly operation. By using advanced technologies in combustion, exhaust after-treatment systems and fuel economy management, Perkins reduces environmental impact without compromising power output.
